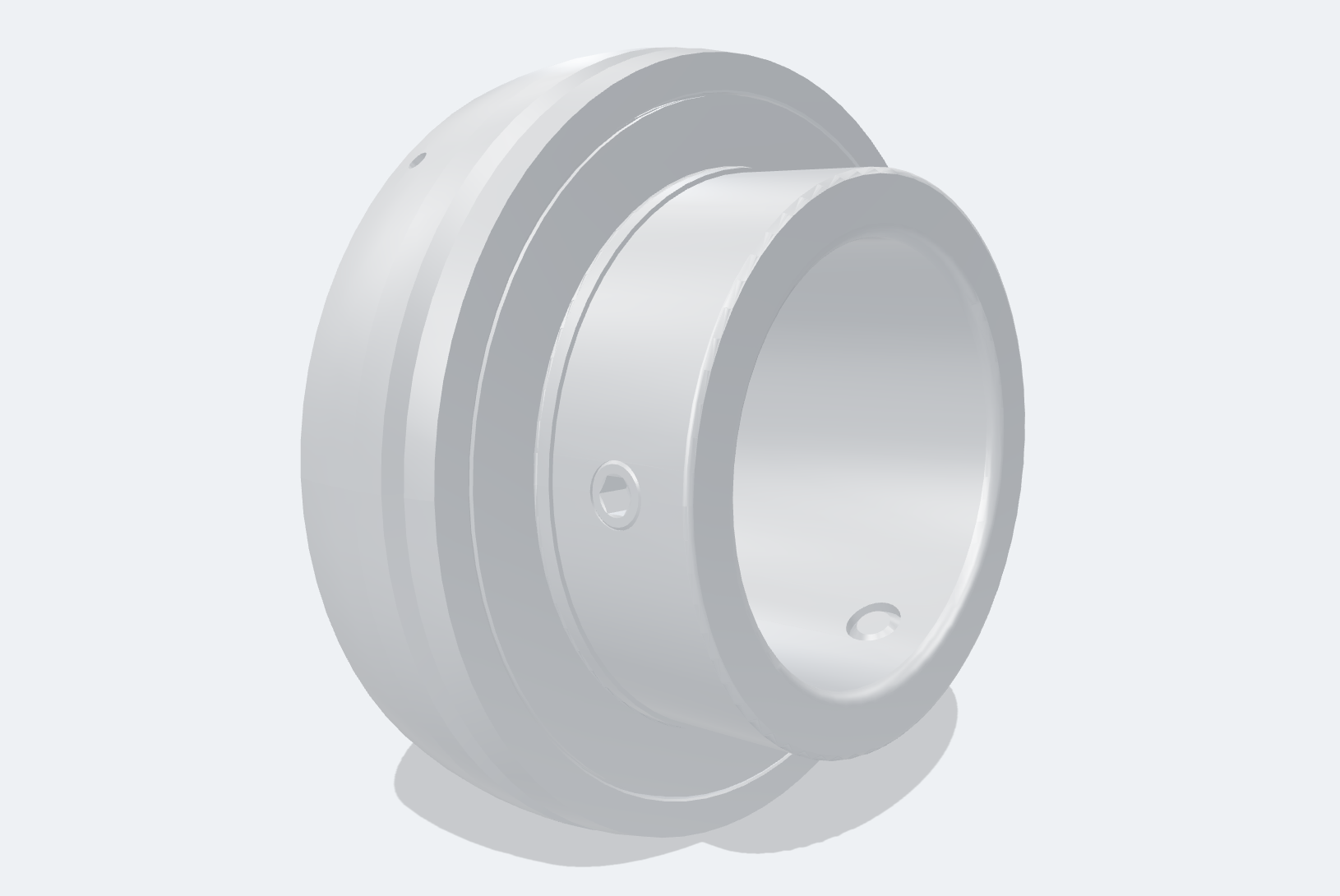

UC213-40GE Insert Ball Bearing
UC213-40GE
Insert ball bearing (spherical outer ring)
Insert ball bearing with a spherical outer surface, designed to be mounted into bearing housings to form a complete bearing unit. The spherical seat allows initial misalignment compensation. Grub (set) screw locking on the inner ring for secure shaft attachment.
- Spherical outer ring compensates initial misalignment
- Grub screw locking — quick and secure shaft mounting
- Sealed and greased for life — maintenance-free operation
- Interchangeable with standard P / F / FL / T housings
Principal dimensions
Highlights
- Designed for mounted bearing units (pillow block, flange, take-up)
- Spherical OD self-aligns inside the housing seat
- Wide inner ring with two grub screws at 120°
- Dimensions verified against the original STEP CAD model
Technical specification
Key dimensions below are taken from the original CAD model. For the complete datasheet (load ratings, limiting speed, shaft tolerances), contact our engineers.
| Property | Symbol | Value |
|---|---|---|
| Outside diameter | D | 120 mm |
| Inner ring overall width | B | 65.1 mm |
| Series | — | UC200 (heavy duty insert) |
| Bore type | d | Cylindrical, grub screw locking |
| Outer ring profile | — | Spherical |
Interactive 3D — rendered in your browser directly from the original STEP CAD file (no plug-in required). Drag to rotate, scroll to zoom.
The UC213-40GE insert bearing is commonly combined with the following housings to form complete bearing units:
UCF213-40 — four-bolt square flange unit
UCFL213-40 — two-bolt oval flange unit
UCT213-40 — take-up unit
UCFC213-40 — round flange cartridge unit
Contact us for housing availability and matching shaft sizes.
