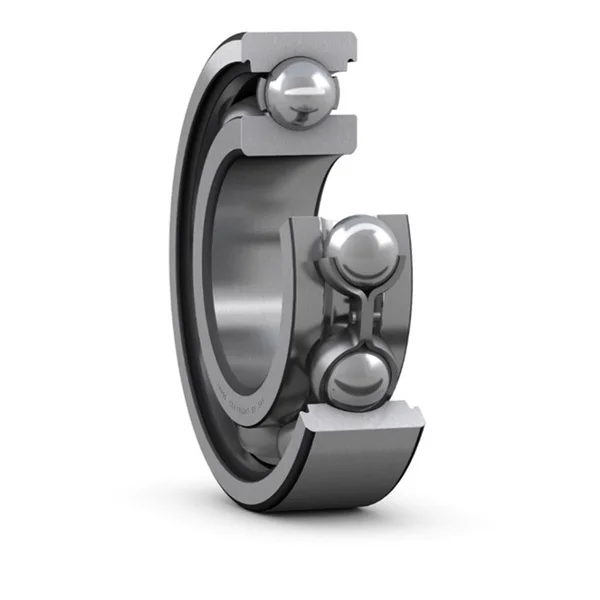

62 Series Deep Groove Ball Bearings

Single row deep groove ball bearings, metric series. Dimensions and load ratings according to ISO standards.

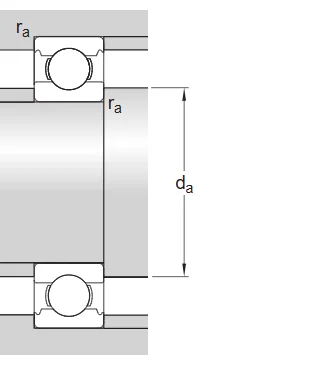

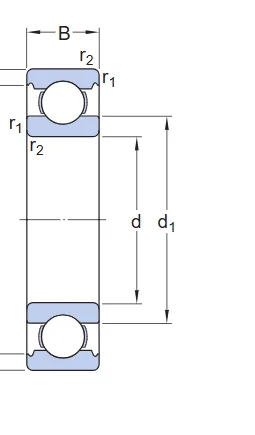

Model	Dimensions (mm)				Mounting dimensions (mm)			Basic load ratings (kN)		Limiting Speed (r/min)		Mass (kg)	TCB
Model	d	D	B	r min	da min	Da max	ra max	Cr	Cor	Grease	Oil	Mass (kg)	TCB
6200	10	30	9	0.6	14.2	25.8	0.6	5.4	2.36	24000	30000	0.032
6201	12	32	10	0.6	16.2	27.8	0.6	7.28	3.1	22000	28000	0.037
6202	15	35	11	0.6	19.2	30.3	0.6	8.06	3.75	19000	24000	0.045
6203	17	40	12	0.6	21.2	35.8	0.6	9.5	4.7	18000	22000	0.063
6204	20	47	14	1.0	25.6	41.4	1	12.8	6.6	15000	18000	0.105
6205	25	52	15	1.0	30.6	46.1	1	14	7.8	14000	17000	0.125
62/28	28	58	16	1.0	33.6	52.4	1	16.6	9.5	12000	14000	0.171
6206	30	62	16	1.0	35.6	56.4	1	19.4	11.2	11000	14000	0.192
62/32	32	65	17	1.0	37	60	1	20.7	11.6	11000	12000	0.226
6207	35	72	17	1.1	42	65	1	25.6	15.2	9500	12000	0.288
6208	40	80	18	1.1	47	73	1	32.6	19.8	8500	10000	0.366
6209	45	85	19	1.1	52	78	1	32.7	20.4	8000	9500	0.405
6210	50	90	20	1.1	57	83	1	35	23.1	7500	9000	0.453
6211	55	100	21	1.5	64	91	1.5	43.3	29.2	6700	8000	0.607
6212	60	110	22	1.5	69	101	1.5	47.7	32.9	6000	7000	0.783
6213	65	120	23	1.5	74	111	1.5	57.2	40	5300	6300	0.982
6214	70	125	24	1.5	79	116	1.5	62.2	44	5000	6000	1.080
6215	75	130	25	1.5	84	121	1.5	66.1	49.5	4800	5600	1.210
6216	80	140	26	2.0	91	129	2	72.8	55	4500	5300	1.4
6217	85	150	28	2.0	94	141	2	87.1	64	4300	5000	2.15
6218	90	160	30	2.0	101	149	2	101	73.5	3800	4500	2.15
6219	95	170	32	2.1	106	159	2	114	81.5	3600	4300	2.6
6220	100	180	34	2.1	111	169	2	127	93	3400	4000	3.15
6020	100	150	24	1.5	107	143	1.5	63.7	54	4300	5000	1.25

Note: The above data is for reference only. Please contact TCB for special requirements.
